<div class="fusion-layout-column fusion_builder_column fusion-builder-column-38 fusion_builder_column_1_1 1_1 fusion-flex-column" style="--awb-bg-size:cover;--awb-width-large:100%;--awb-margin-top-large:0px;--awb-spacing-right-large:0px;--awb-margin-bottom-large:20px;--awb-spacing-left-large:0px;--awb-width-medium:100%;--awb-spacing-right-medium:0px;--awb-spacing-left-medium:0px;--awb-width-small:100%;--awb-spacing-right-small:0px;--awb-spacing-left-small:0px;"> Lynx EVO usa la tecnologia brevettata Dynascope per proiettare immagini stereo negli occhi degli operatori.

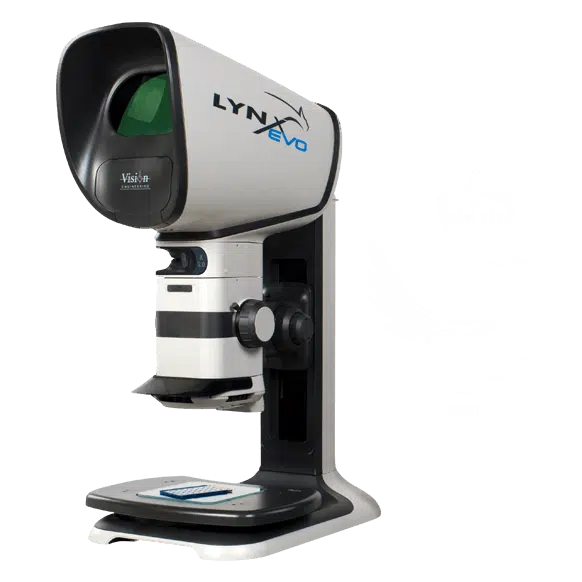

Lynx EVO

Stereomicroscopio per ispezione senza oculari e ad alte prestazioni

Award-winning eyepiece-less high-contrast stereo microscope designed to increase productivity and user comfort during long periods of inspection and/or rework.

Ergonomic fatigue-free inspection
Bright, high-resolution, high-contrast stereo images
Build a system to suit your application

Work better, for longer

The Lynx EVO stereo microscope was designed to increase productivity through superior ergonomics. Whatever your challenge – inspection, production, reworking, or anything else requiring magnification – 3D depth perception and bright, high resolution, high contrast images lets you work comfortably and with greater concentration. Magnifications from 2.7x to 240x make it ideal for a wide range of applications.

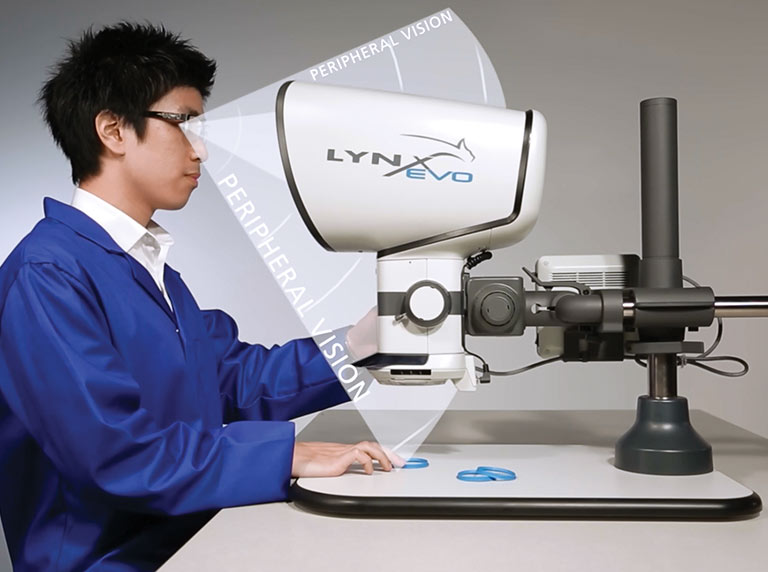

Lynx EVO stereo zoom microscope allows peripheral vision

Greater efficiency

Providing enhanced hand-to-eye coordination, more working space for tools and better peripheral vision for easy interaction with the your working environment, Lynx EVO transforms the way you work. And with no eyepieces to adjust, it’s easy to share between multiple users, increasing productivity and ensuring maximum return on your investment.

Dynascope technology for superior imaging

Dynascope has redefined the science of microscopy, overcoming the physical limitations of conventional microscopes to help laboratories and workshops improve quality and productivity. At its heart there is a multi-lenticular disc which incorporates more than 3.5 million individual lenses or ‘lenticules’, each just a few microns in diameter. The multi‐lenticular disk spins at high speed to merge the millions of individual optical paths into a high‐clarity, high contrast image.

2.7 – 240x

Magnification

Easy

Viewing

HD

Image Capture

Exceptional ease of use

Lynx EVO is extremely easy to use. There are no eyepieces to set up for different users, and focusing and illumination is controlled with simple dials. Dual iris control is managed with a single slide mechanism.

stereo microscope user with mask and safety glasses using Lynx EVO

Health and productivity

The award-winning Lynx EVO delivers substantial benefits over traditional binocular microscopes, including the ability to wear prescription or safety glasses, superior imaging with less eyestrain, freedom of head movement, better posture, and dramatically improved operator comfort even during longer sessions. It all adds up to greater productivity, faster throughput, improved hand-eye co-ordination and fewer errors.

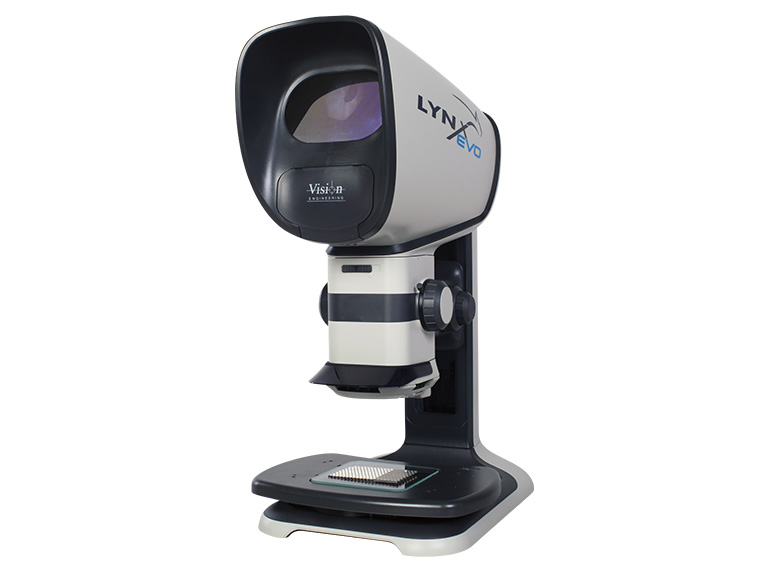

Lynx EVO Ergo System

Highly stable for working with fine detail at magnifications of up to 240x, with illumination from above and below for working with opaque, translucent or perforated subjects.

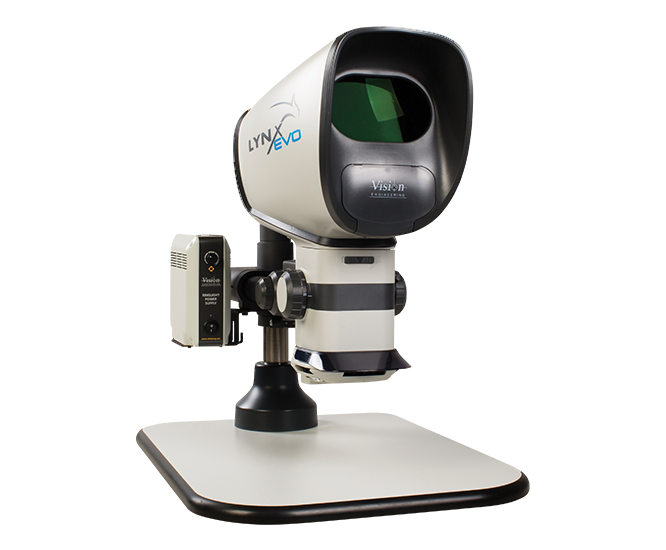

Lynx EVO angled view configuration

Providing an angled view of the subject, slide and rotational movements, this configuration is ideal for the inspection and reworking, with generous space for working with tools.

Lynx EVO with EVOTIS

EVOTIS is an advanced inspection workstation for large area subjects such as PCBs and multi-layer components, enabling quick, efficient inspection of fine detail.

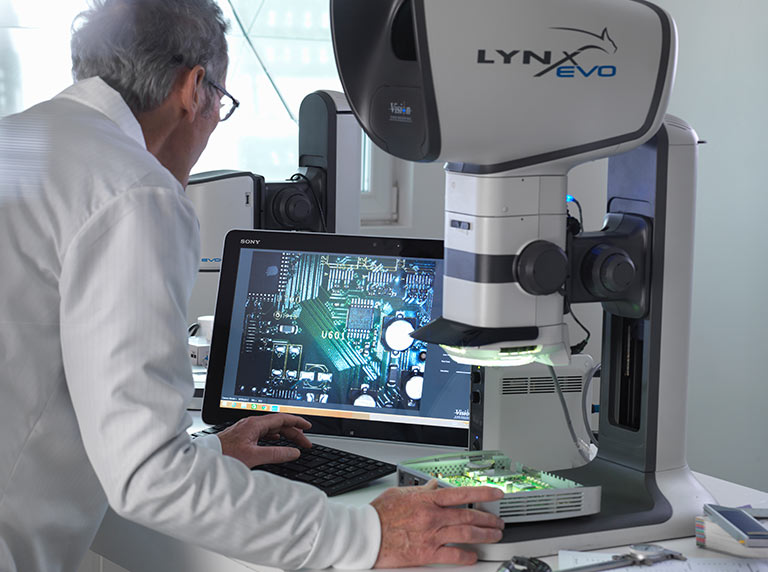

01-Lynx-EVO-zoom-stereo-microscope-768x572px

Options for any challenge

A choice of fixed or zoom magnification configurations and a range of useful accessories lets you configure Lynx EVO to your precise and individual needs.

Rotating viewer

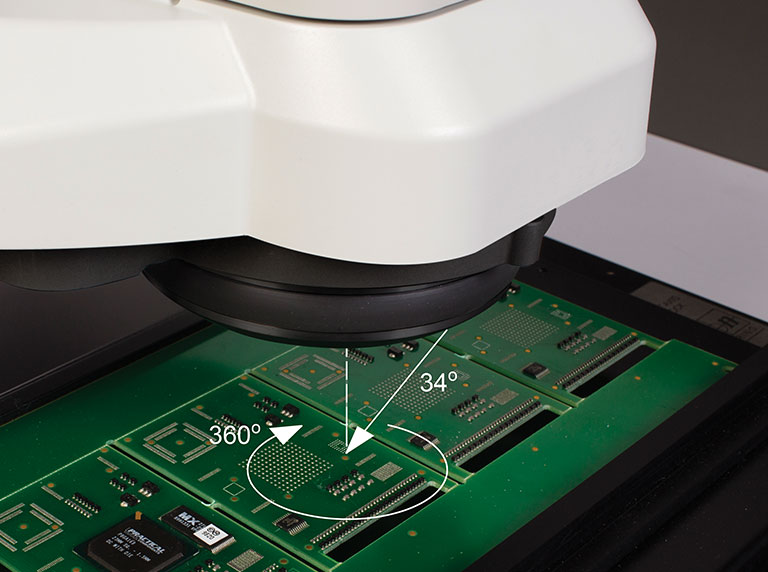

A 360° rotating viewer lets the operator look in and around the subject without touching it, by manipulating the optical path.

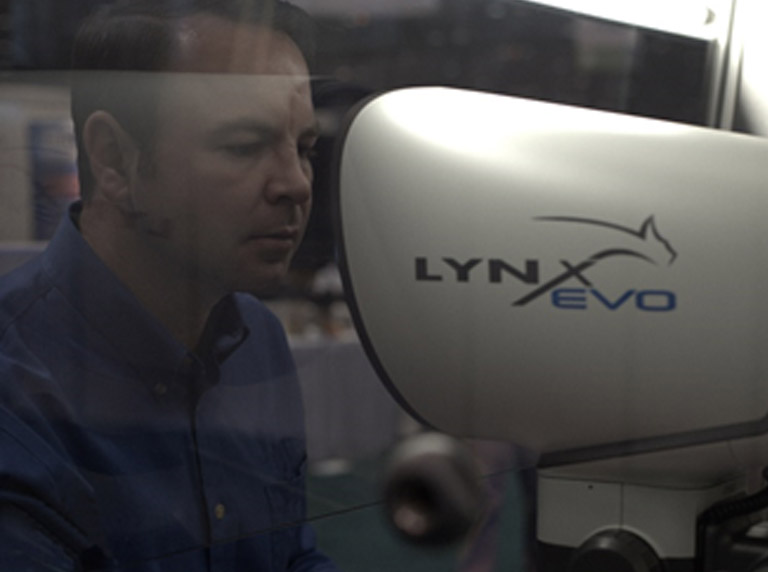

Lynx EVO microscope inside laminar flow cabinet with user

Choice of stands

A variety of ergonomic stands makes Lynx EVO suited to any industrial or life science application.

Still and video cameras

Lynx EVO can be equipped with still and video cameras, and ViCapture software, for image capture enhanced with annotation capabilities and other productivity features.

Microscopio Lynx Evo che ispeziona un PCB

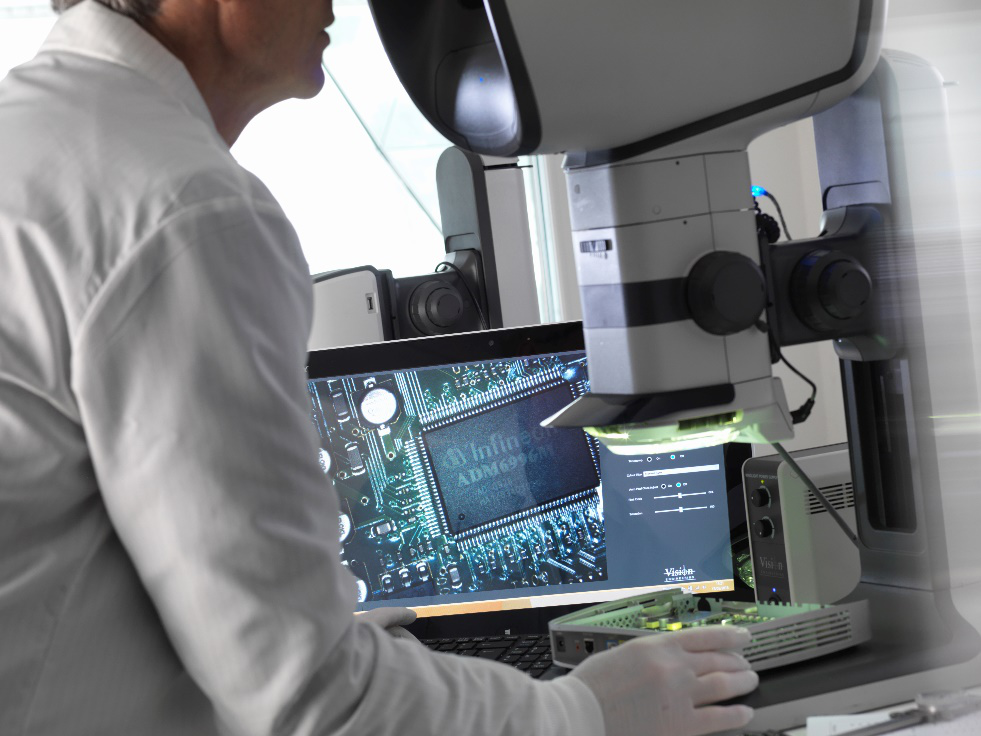

Lynx EVO microscope displaying PCB on monitor

Software

A range of software for image capture, annotation, dimensioning and reporting is available.

Technical

Optical

Zoom Ratio – 10x

Objective Lenses	Magnification range	Working Distance (mm)	Max Field of View (mm)
0.45x	2.7x – 27x	176	55
0.62x	3.7x – 37x	128	40
1.0x	6x – 60x	75	25
1.5x	9x – 90x	42	16
2.0x	12x – 120x	29	12

Zoom Ratio – 15x With 1.5 Multiplier

Objective Lenses	Magnification range	Working Distance (mm)	Max Field of View (mm)
0.45x	2.7x – 40x	176	55
0.62x	3.7x – 55x	128	40
1.0x	6x – 90x	75	25
1.5x	9x – 135x	42	16
2.0x	12x – 180x	29	12

Zoom Ratio – 20x With 2.0 Multiplier

Objective Lenses	Magnification range	Working Distance (mm)	Max Field of View (mm)
0.45x	2.7x – 54x	176	55
0.62x	3.7x – 74x	128	40
1.0x	6x – 120x	75	25
1.5x	9x – 180x	42	16
2.0x	12x – 240x	29	12

With 360° Optical Viewer

Viewer Setting	Rotating View	Direct View
Magnification range	4.2x – 42x	6.8x – 68x
with 1.5 Multiplier	4.2x – 63x	6.8x – 102x
with 2.0 Multiplier	4.2x – 84x	6.8x – 136x
Working Distance	35.5mm	56.5mm
Max Field of View	10.2mm	12mm
Viewing Angle	34°	N/A

FIXED magnification configuration

Objective Lenses	Magnification	Working Distance	Max Field of View)
0.45x	8.5x	175 mm	17.5 mm
0.5x	10x	159 mm	15.3 mm
0.62x	12x	125 mm	12.9 mm
1.0x	20x	75 mm	7.65 mm
1.5x	30x	42 mm	5.1 mm
2.0x	40x	29 mm	3.82 mm

FIXED magnification configuration (with 1.5x Multiplier)

Objective Lenses	Magnification	Working Distance	Max Field of View)
0.45x	8.5x	175 mm	11.65 mm
0.5x	10x	159 mm	10.2 mm
0.62x	12x	125 mm	8.6 mm
1.0x	20x	75 mm	5.1 mm
1.5x	30x	42 mm	3.4 mm
2.0x	40x	29 mm	2.55 mm

FIXED magnification configuration (with 2x Multiplier)

Objective Lenses	Magnification	Working Distance	Max Field of View)
0.45x	8.5x	175 mm	8.9 mm
0.5x	10x	159 mm	7.65 mm
0.62x	12x	125 mm	6.4 mm
1.0x	20x	75 mm	3.82 mm
1.5x	30x	42 mm	2.6 mm
2.0x	40x	29 mm	1.91 mm

Stand Options

Stand Options
Ergo stand	Small footprint, high stability for high magnification use. Optional substage illumination. Floating stage can be fitted.
Multi-Axis stand	Precise and robust. Ideal for industrial application where maximum work space is required. Counterbalanced for quick, effortless, adjustability. Available with direct mounting to work surface or platform base (sub-stage base option is also available).
Boom stand	Only compatible with the fixed magnification configuration. Use with desk clamp or desk bolt.

Camera (optional)

	Smart CAM 50
Sensor type	CMOS
Resolution (H x W)	2592 x 1944 pixels
Sensor size	1/2.5″
File formats	BMP, JPG, PNG, AVI
Supplied software	ViCapture

Software Options

Software Options
ViCapture	Image and video capture (supplied with camera).
DimensionOne	Image capture, annotation, on-screen measurement.
DimensionTwo	Image capture, annotation, on-screen measurement, camera control.
VifoxEVO	Image capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting.
ViPlus	Image capture, annotation, on-screen measurement, camera control, reporting.

Power Supply

Standard power 100V-240V, 50/60Hz, available in all worldwide plug configurations.

Other Accessories

Floating stage: For use with Ergo Stand
Graticule
Measuring scales
Fixed wedge: To tilt head upwards (25°) or downwards (25°)
Contrast Enhancing Base: To optimise lighting for a variety of transparent and translucent samples, enhancing the observed contrast. (Brochure PDF)
EVO Elevate: To optimise height adjustment without compromising great ergonomics (EVO Elevate Datasheet PDF)
